ConHub provisioning

In this article you will find a step-by-step guide on how to connect a Dräger ConHub.

Setup Guide

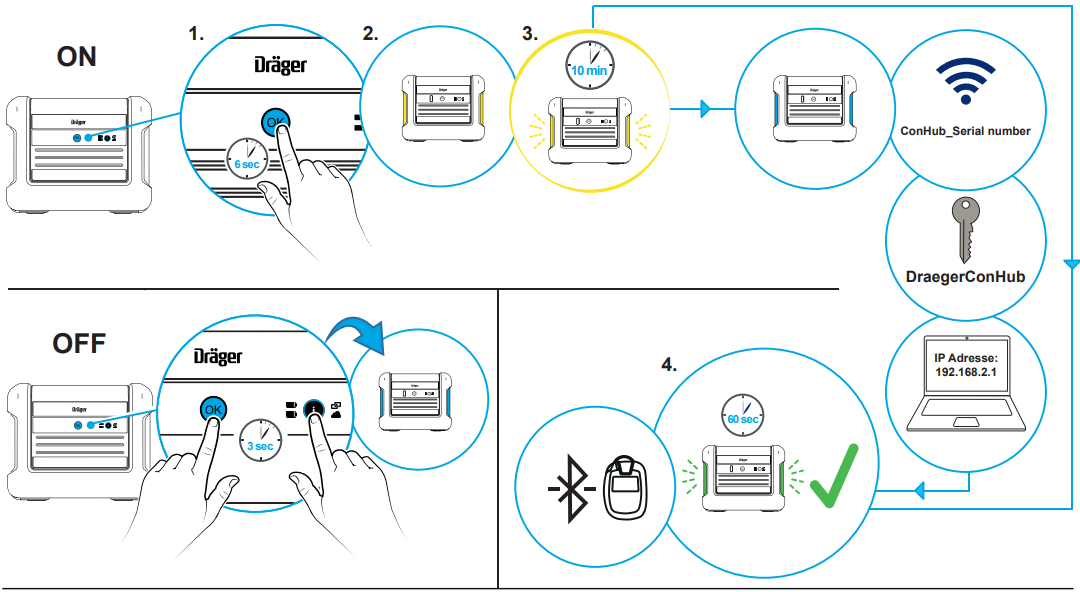

  1. Switch on ConHub - Press and hold the "OK" Button for 6 s econds
  2. ConHub will boot and display blue LEDs if the boot process was successful
  3. Open the WIFI settings on a PC, laptop or tablet and connect to the ConHub Wifi (name: ConHub_Serial_number - password: DraegerConHub)
  4. Open web browser on PC, laptop, tablet and navigate to the following address: 192.168.2.1
  5. Follow the instructions on the screen to set up the ConHub with GDC

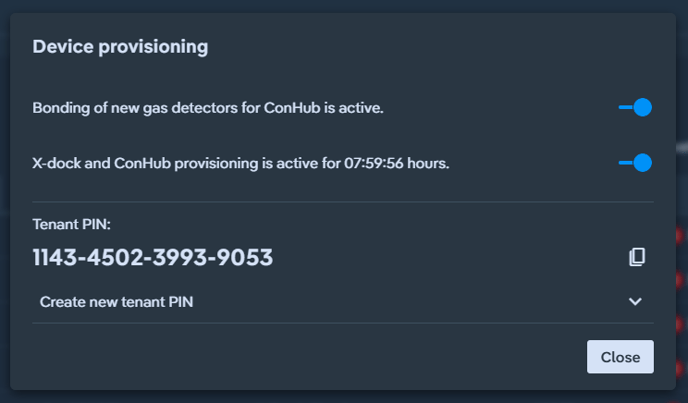

  6. In GDC: Open the “Device Provisioning” dialog and activate “X-dock and ConHub provisioning”.
  7. Enter the tenant PIN in the ConHub setup guide.
  8. The ConHub is automatically connected to GDC and is available on the “ConHubs” tab of the GDC asset management.
